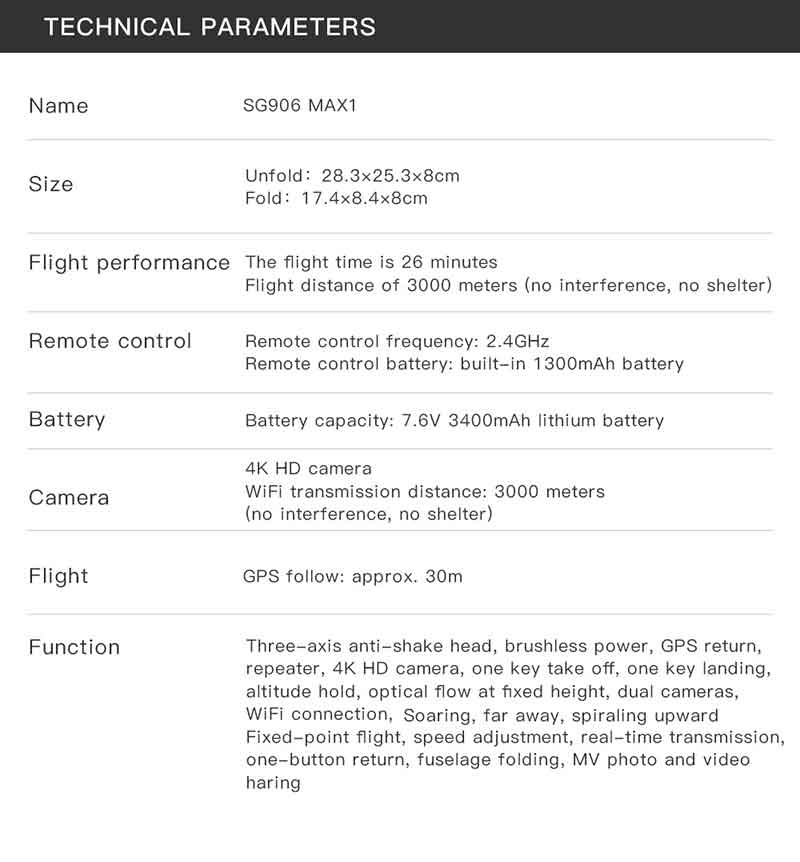

| Product configuration parameter: | |
| Repeater | Yes |

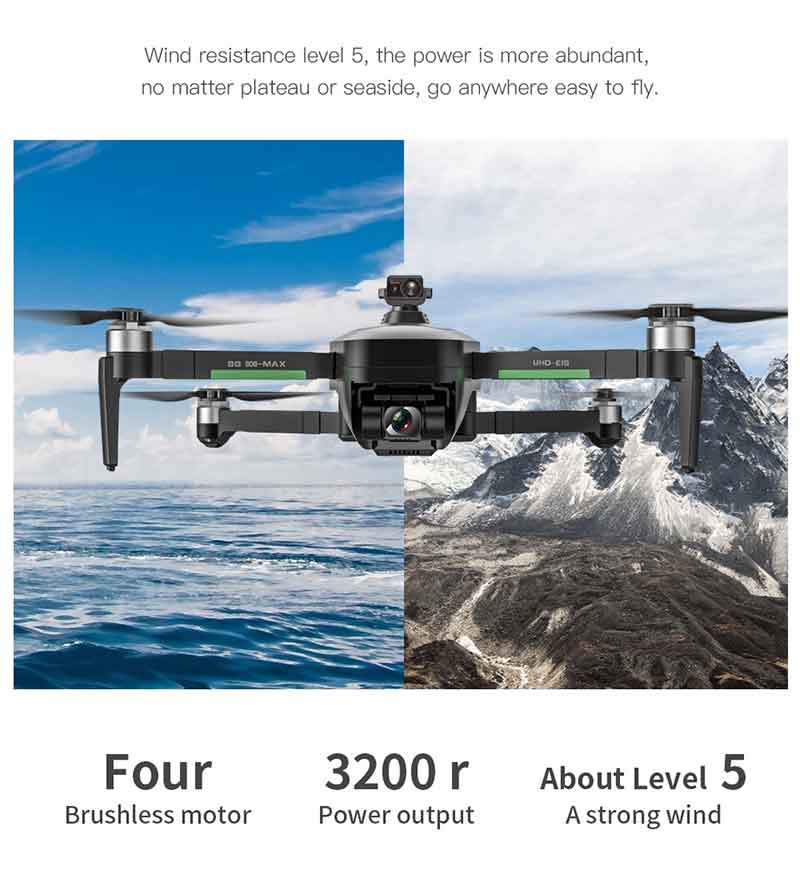

| Brushless Motor | 1806 |
| Obstacle avoidance | 360° |
| Pressure sensor | Height setting |
| Motor power | 1700/KV |
| Electric power adjustment | 30A |

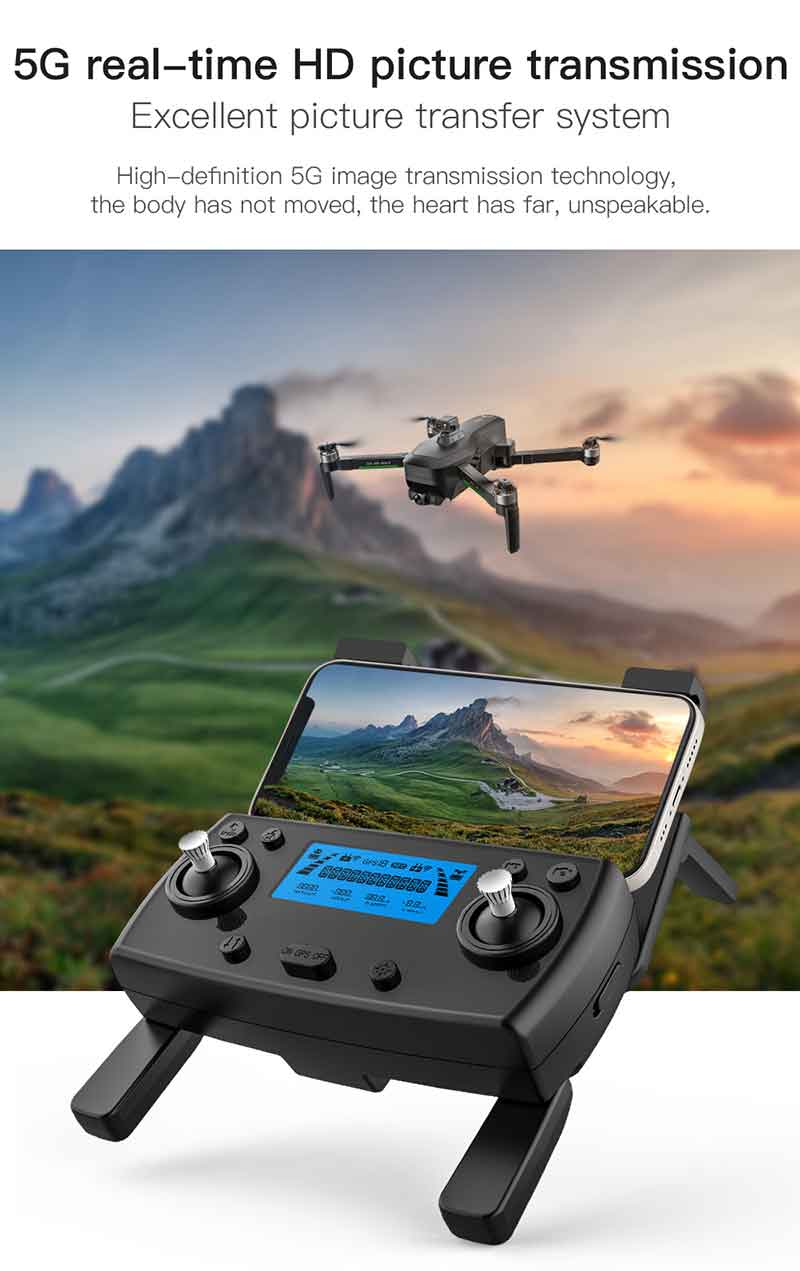

| Image transmission receiving mode | Repeater +5G system Strong signal |

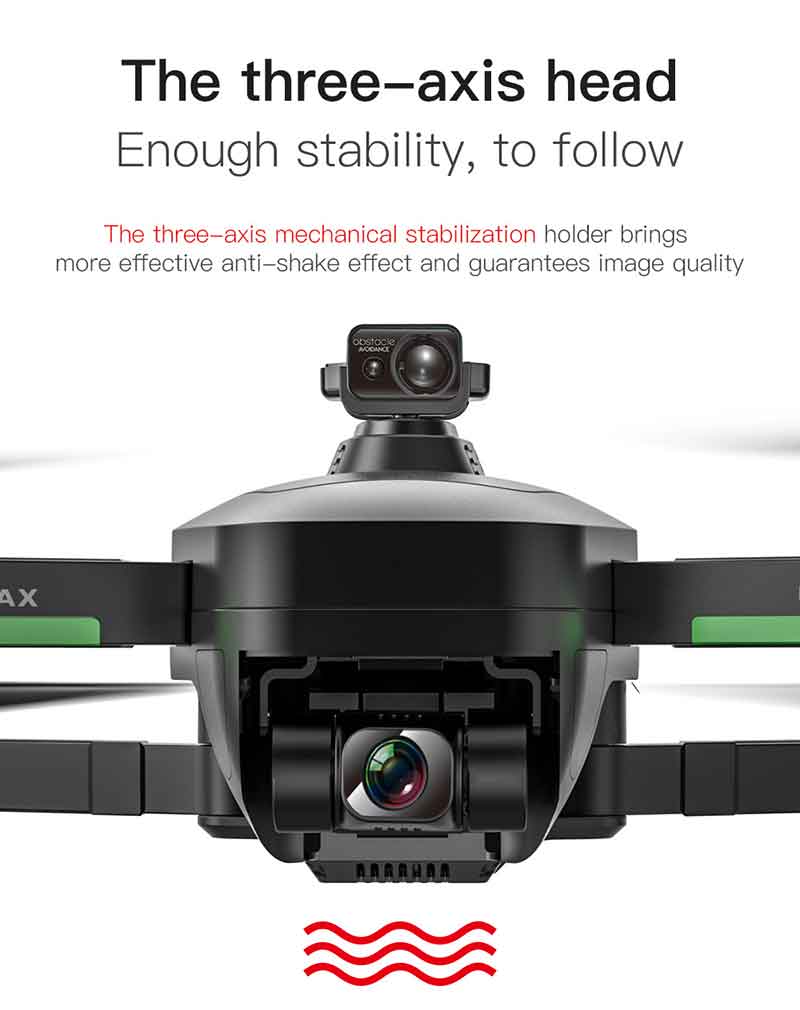

| Three - axis mechanical self - stabilizing head | Yes |
| Self-stabilizing electronic anti-shake Lens | Yes |
| Obstacle avoidance detection range | 360° |
| Obstacle avoidance detection range | ≤20M |
| Remote control phone clip size (Supports maximum phone size) | 7 inches |
| Remote control battery | Built-in 3.7V 1300mAh lithium battery |

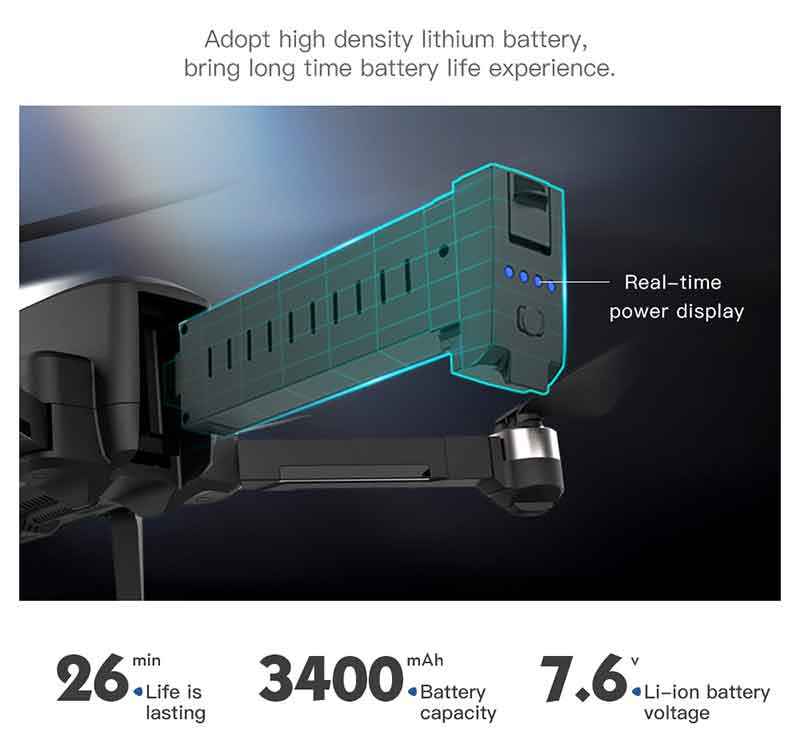

| Capacity of smart lithium battery | 7.6V 3400mAh/7.6V 5000mAh |
| Control distance (Free interference and no occlusion) | 3000M |
| Wifi image transmission distance (Free interference and no occlusion) | 3000M |

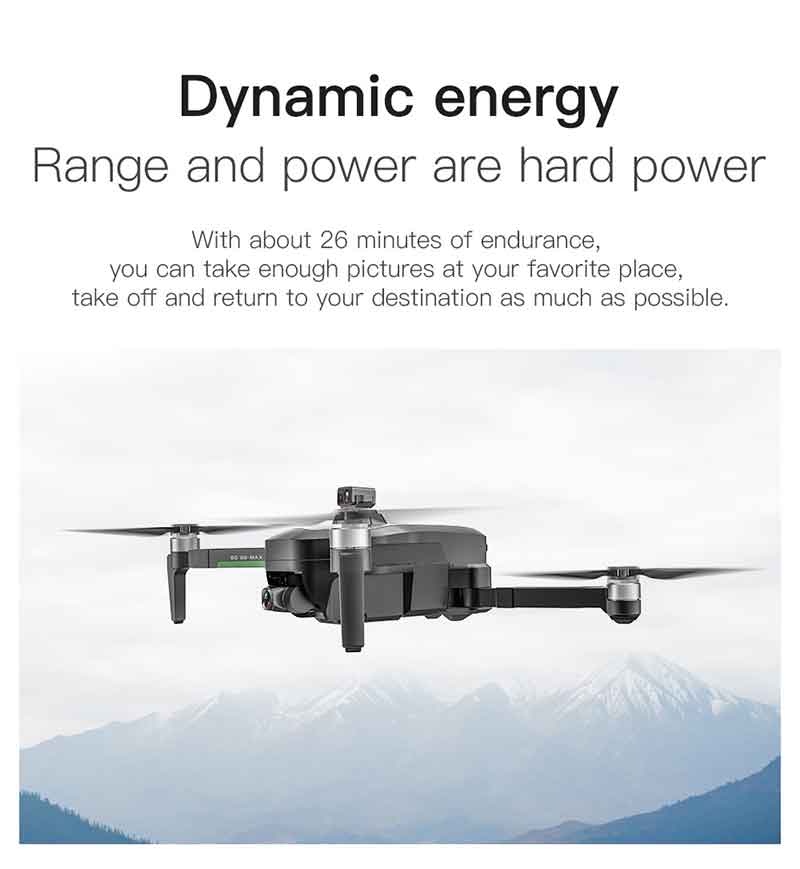

| Flight time | About 26 min/30min |
| Charging time | About 6 hours |
| USB Charging (5V) | Yes |
| Product size | 17.4x8.4x7cm 28.3x25.3x7cm |
| Product's Weigh | 585.6g |
| Battery weight | 152g |
| Aerial photography configuration parameters: | |
| APP name and system | XLL MAX (System: IOS Android) |
| Optical flow localization | Yes |

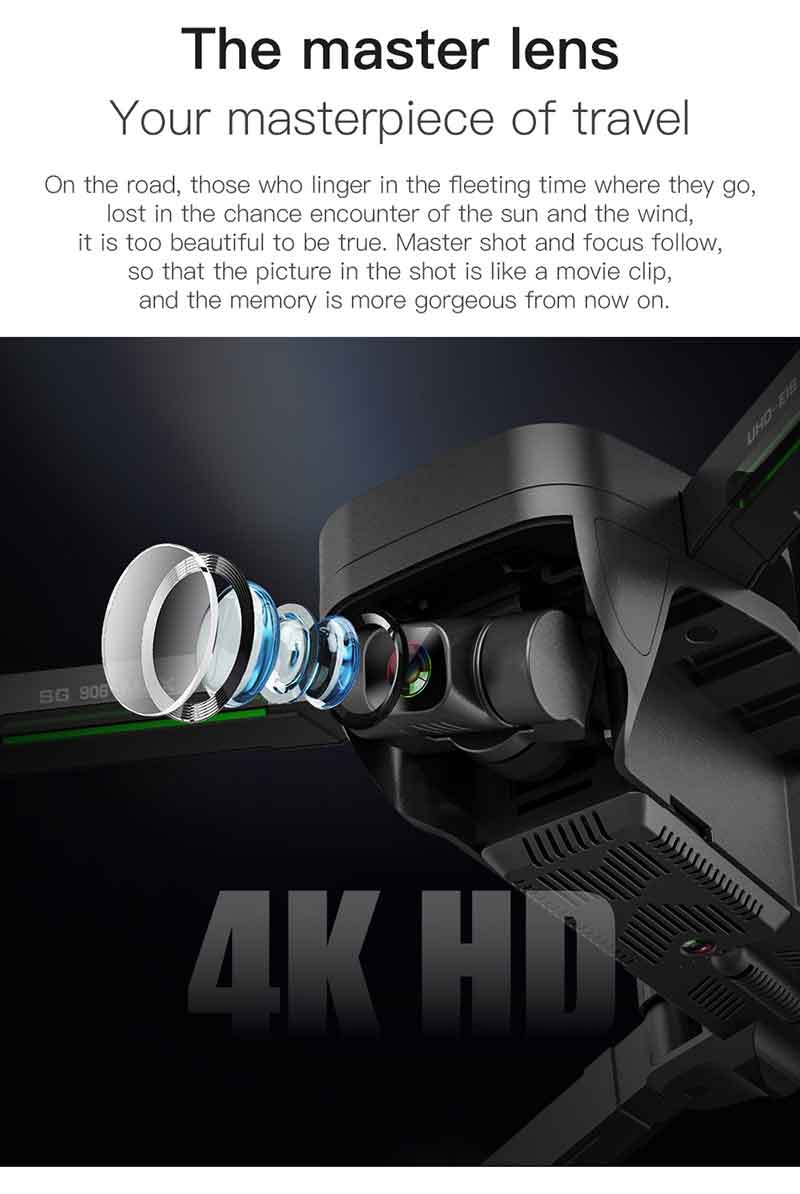

| 4K HD camera | Yes |
| Camera lens | Adjustable camera by transmitter, 110° |
| GPS Follow me | 15M |
| IMAGE Follow me | 1-5M |
| Focal length | 50x |
| Tap flight | Yes |
| Fixed point surround | Yes |
| Hand gesture shooting/video reconization | 1-5M |
| Photo/video share | Yes |
| GPS/GLONASS double mode | Yes |
| Video resolution(Front camera) | 2048*1080（TF） 1280*720 (APP) |
| Photo resolution(Front camera) | 4096*3072P(TF) 4096*3072P(APP) |
| Video resolution(Bottom camera) | 1280*720p |
| Photo resolution(Bottomont camera) | 1280*720p |
| Frame rate(Front camera) | 25 fps |
| Frame rate(Bottom camera) | 25 fps |

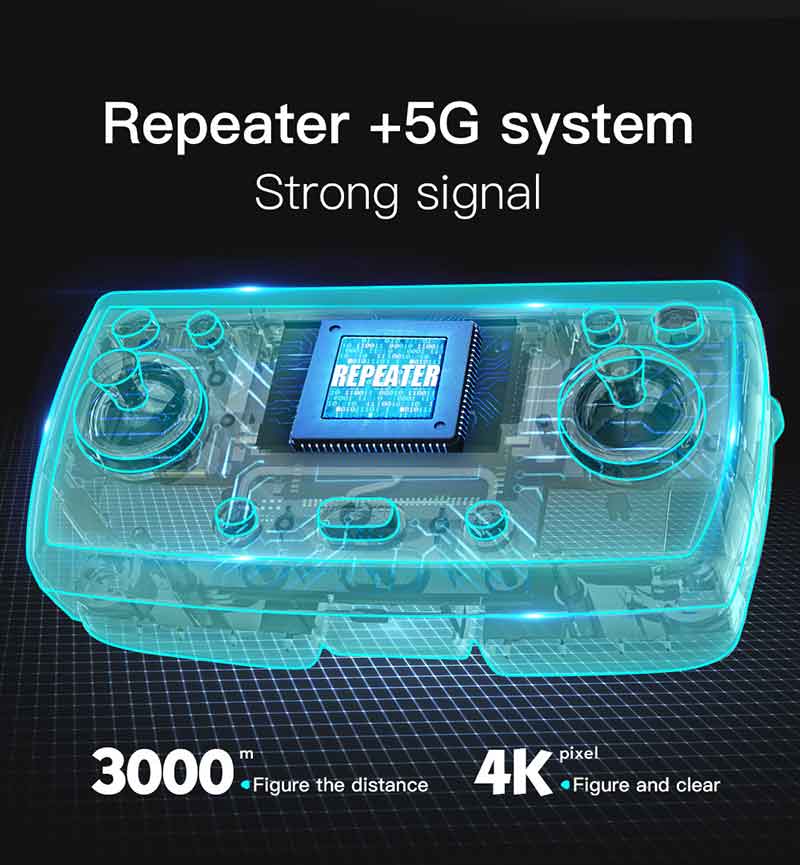

1. Repeater: The remote control has a built-in relay device to enhance the remote control and picture transmission signal, compensate for signal attenuation, make the distance between the remote control and picture transmission longer and the signal more stable.

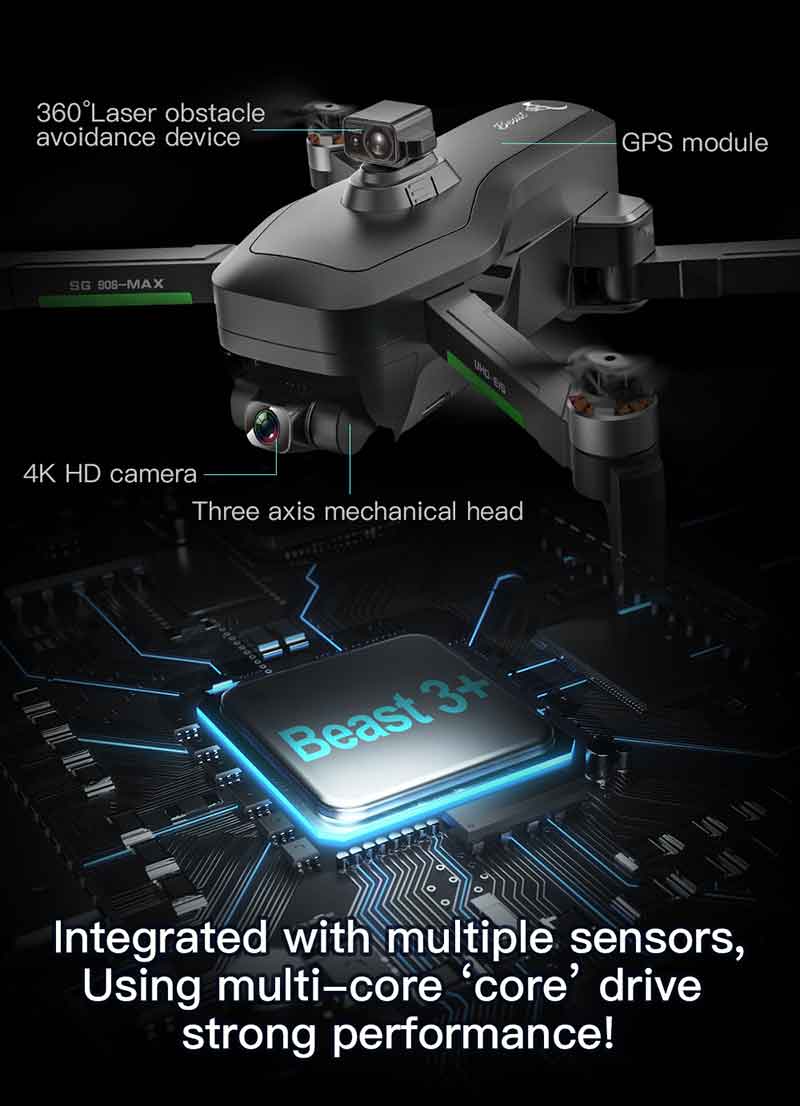

2. 360° obstacle avoidance function: The obstacle avoidance device detects whether there is an obstacle in the direction of the aircraft through laser scanning. If the obstacle is detected within 20 meters, the remote control will issue an alarm, and the UAV will automatically hover and cannot move forward
3. GPS one-click return to the take-off point, low power return, no signal return.
4. GPS intelligent follow, fixed point around, route multi-point planning flight, one-click skyward, gradually far, spiral
5. gesture photo/video
6. MV function: filter, video effects, add background music, picture/video sharing
7. Aircraft retrieval function

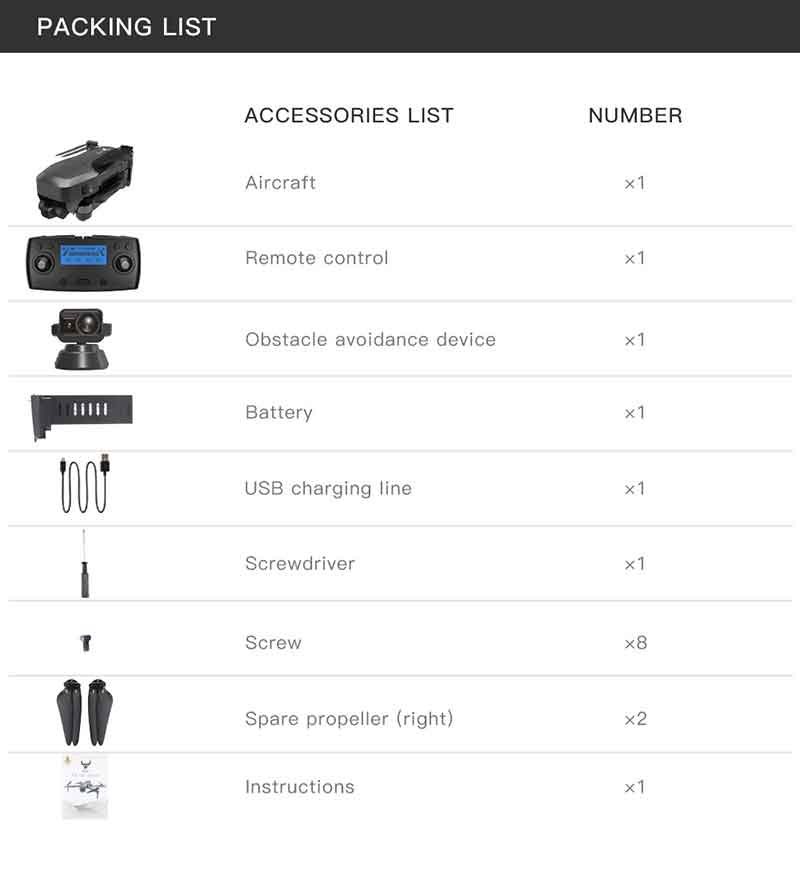

The package includes:
Aircraft x1
Remote control x1
Obstacle avoidance device x1
Battery x1/2/3
USB charging line x1
Screwdriver x1
Screw x8
Spare propeller(right) x2
Instructions x1
